750L EV Connector Temperature Controlled Water Bath Testing Equipment

Name: 750L EV Connector Temperature Controlled Water Bath Testing Equipment
Brand: Sinuo
Price: 1 USD

Quality 750L EV Connector Temperature Controlled Water Bath Testing Equipment for sale

Brand Name : Sinuo

Model Number : SNQC1015

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 20 sets/month

Delivery Time : 30 days

Packaging Details : Plywood case

Insulation power : 5KW

Inner dimensions (L*W*H) : 1500×500×1000mm

Temperature stability : <1.5℃

Input voltage : AC 380V/50HZ

Temperature control range : room temperature ~ 100℃

Electric heating power : 18KW

Contact Now

750L EV Connector Temperature Controlled Water Bath Testing Equipment

Complied Standards & Clauses

This constant water bath is required by IEC 60811-402:2012, IEC502-83, etc.

Equipment Overview

This constant temperature water bath is specially designed for precision electrical performance testing of PVC wires and cables. The inner tank and cover are constructed from high-quality stainless steel, while the exterior adopts a durable cold-rolled steel chassis for long-lasting stability and corrosion resistance. Equipped with electric heating, intelligent temperature control, and a clear digital display, the system ensures accurate and uniform temperature distribution. An optional circulating pump is available to further enhance temperature consistency for demanding applications.

With its elegant design, energy-efficient operation, and reliable temperature stability, this water bath is widely used by quality inspection laboratories and cable manufacturers to measure DC resistance, insulation resistance, and other key performance parameters. Fully compliant with IEC 60811-402:2012, IEC502-83, and related standards, it provides a dependable solution for constant-temperature water bath testing in professional cable evaluation. The integrated insulation port allows easy threading of wires and cables, offering both convenience and efficiency in daily testing work.

Technical Parameters

Parameter	Specification
Inner Dimensions (L×W×H)	1500 × 500 × 1000 mm
Temperature Control Range	Room temperature ~ 100℃ (user can preset required test temperature, e.g., 70℃ or 90℃)
Temperature Stability	< 1.5℃
Electric Heating Power	18 KW
Insulation Power	5 KW
Input Voltage	AC 380V / 50Hz
Temperature Uniformity Guarantee	High-precision instrument control + circulation pump for forced circulation
Low Water Level Alarm	Yes, heating tube automatically powers off when water is insufficient
Cover Holes & Layout	12 holes total: two each of 1, 2, 3, 4, 5, 10 cm
Automatic Water Replenishment	Yes
Display & Interface	LCD panel display with computer interface (RS485)
Usage Notes	- Read the manual carefully and be familiar with the instrument and control panel- Use a megohmmeter to check if power supply, plug, and grounding are properly insulated and not short-circuited- Use distilled water only; river water or hard water is prohibited- If tap water is used, clean the water bath after each use to prevent scale buildup on the heater, which may affect temperature sensitivity

Details

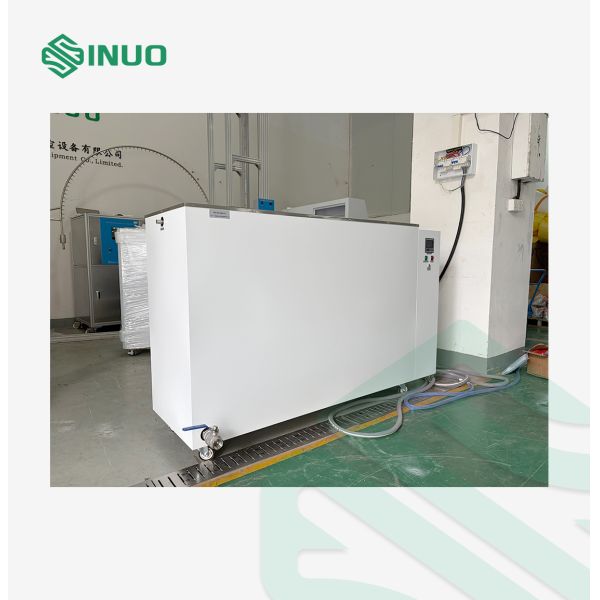

750L EV Connector Temperature Controlled Water Bath Testing Equipment
